45×70mm DPC Aluminum Nitride Ceramic Substrate - For Endoscope Light Source Systems

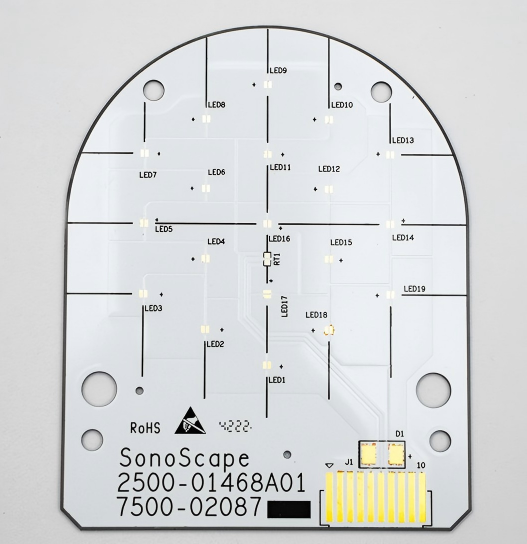

This product is a high-performance ceramic circuit board specifically designed for medical endoscope cold light source systems. Utilizing biocompatible aluminum nitride ceramic material and Direct Plated Copper technology, it achieves precise single-layer circuit layout within an optimized 45×70mm size. The product offers exceptional thermal conductivity, stable optical performance and excellent electrical insulation characteristics, providing reliable heat dissipation foundation and circuit support for high-brightness LED/LD light source modules.
Thermal conductivity: ≥170 W/(m·K)
Thermal resistance: ＜2.5 K/W
Operating temperature: 0℃～120℃
Surface flatness: ≤0.5μm
Reflectivity: ≥85% (@450nm)
Thermal deformation: ≤0.1%
Withstand voltage: ≥3.5 kV
Insulation resistance: ≥10¹³ Ω
Dielectric constant: 8.6 @1MHz
ISO 13485 certified
Complies with ISO 10993 biocompatibility
Meets IEC 60601-1 safety standards
Medical rigid/flexible endoscope cold light sources
Laparoscopic surgical lighting systems
Arthroscopic minimally invasive light sources
ENT endoscope illumination
Dental endoscope light modules
Veterinary endoscope lighting equipment
Q: Why choose AlN ceramic for endoscope light sources?
A: Endoscope systems require extremely high stability and color fidelity. AlN's excellent thermal conductivity quickly dissipates heat from high-power LEDs/LDs, preventing spectral drift and brightness attenuation.
Q: How to ensure safety in medical environments?
A: Substrate material is ISO 10993 certified with medical-grade encapsulation, ensuring absolute safety in human contact environments while meeting IEC 60601-1 standards.
Q: Can single-layer design meet complex light source layouts?
A: Optimized circuit topology enables single-layer structure to fully meet multi-channel LED/LD layout requirements while avoiding potential failure risks of multilayer structures.
Q: Support for customized optical structures?
A: Supports customized optical integration including lens mounting structures and reflector arrays according to optical design requirements.
Q: What is the product lifespan?
A: Product life exceeds 10,000 hours under rated operating conditions, meeting medical equipment longevity requirements.
