Sensor Module Packaging Substrate

XRMK offers specialized packaging substrates for sensor modules, designed to provide superior protection and performance in high-demand applications. Our ceramic substrates for sensor modules are engineered using advanced packaging technologies, including DBC (Direct Bonded Copper) and AMB (Active Metal Brazing) processes, to ensure reliability, high thermal conductivity, and minimal signal interference. These substrates are ideal for applications in automotive sensors, industrial monitoring systems, and medical devices, where accurate data acquisition and protection are critical. XRMK’s sensor module packaging substrates are designed to meet the growing demand for compact, durable, and high-performance sensor systems, ensuring long-lasting reliability and operational stability in the most challenging environments.
Technology

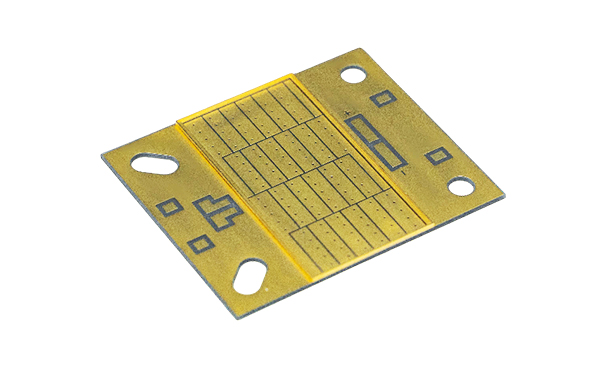

DPC Process
 Laser drilling
 Magnetron sputtering
 Line production
 Plating
 Etching
 Solder Mask
 Surface treatment
 Forming
 Finished product inspection
 Packing and warehousing

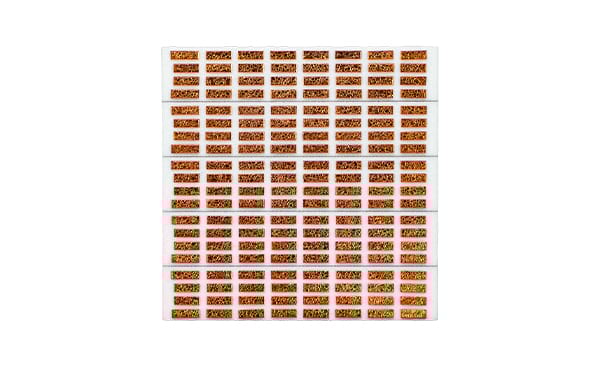

DBC Process
 Copper Oxidation
 Lamination
 sintering
 Line production
 Etching
 Solder Mask
 Surface treatment
 forming
 Finished product inspection
 Packing and warehousing
AMB Process
 Silk screen solder
 Lamination
 sintering
 Line production
 Etching
 Solder Mask
 Surface treatment
 Forming
 Finished product inspection
 Packing and warehousing

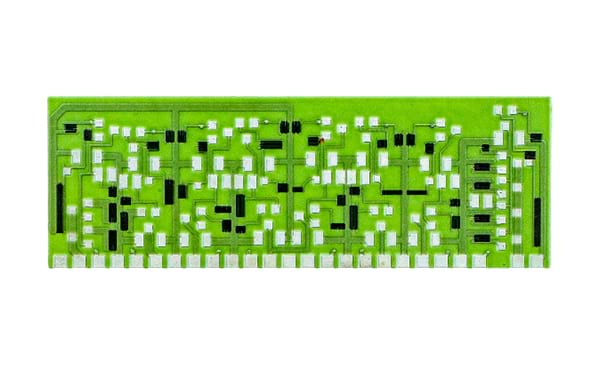

Thick Film Process
 Silk screen conductor
 sintering
 Silk screen resistor
 sintering
 Silk screen glass glaze
 sintering
 Laser resistance trimming
 Forming
 Finished product inspection
 Packing and warehousing
Customization
We Provide You With High-Quality Products
If you need to customize products, please download the form, fill in your customization requirements, and we will contact you as soon as possible.
Contact Us
Ceramics is in our company name, implying that ceramic-based circuit manufacturing is our focus service direction, including the use of DPC process, DBC process and AMB process, forming our full-service technical capabilities.
The introduction of thick film process and thin film process enables us to better adapt to the needs of special microelectronic products and realize the functionalization of circuit substrates.
