3D Ceramic Packaging Substrate for LED Lighting Mounts

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Overview


This product is a 3.5×3.5mm aluminum nitride ceramic packaging substrate specifically designed for high-end LED lighting applications. Manufactured using advanced DPC (Direct Plated Copper) technology, it offers exceptional thermal conductivity and stable electrical characteristics, providing a reliable packaging solution for high-power LED lighting. The precise double-layer circuit design supports complex layouts, meeting the demands for high performance and miniaturization in modern lighting systems.

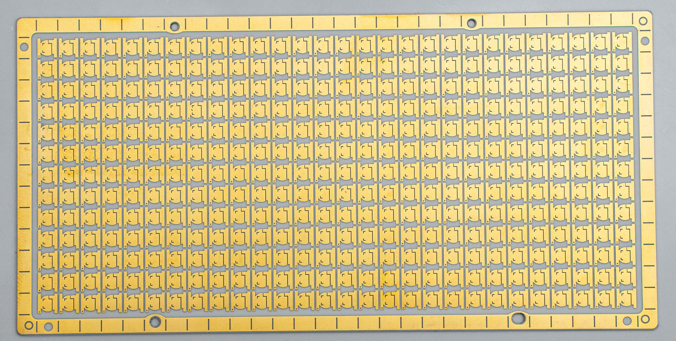

DSC08199

Product Features


1. Superior Thermal Management


AlN ceramic substrate with ≥170 W/mK thermal conductivity

Effectively controls junction temperature, enhances luminous stability

Supports 1-3W single chip power output

2. Precision Circuit Design


50μm line width/spacing via DPC process

Strong copper layer adhesion (≥8kg/cm²)

Surface roughness Ra≤0.1μm

3. High Reliability Structure


CTE matched to LED chips

Operating temperature range: -40℃~150℃

Withstand voltage ≥2.5kV

4. Eco-friendly Material


RoHS compliant

Lead-free and halogen-free design

Recyclable

Applications


High-power LED bulbs

Automotive headlights

Stage lighting equipment

Architectural lighting

Industrial lighting systems

Special lighting devices

FAQ


Q1: What is the main advantage of this substrate?


A1: The core advantage is the combination of AlN material and DPC process, achieving excellent thermal conductivity and precise circuit fabrication, especially suitable for high-power LED packaging.

Q2: Can the substrate withstand reflow process?


A2: Yes, it withstands over 3 cycles of 260℃ lead-free reflow soldering without pad oxidation or deformation.

Q3: Is customization available?


A3: We offer customization services including pad size and circuit layout adjustments per customer requirements.

Q4: How is the insulation performance?


A4: Volume resistivity >10¹⁴ Ω·cm, dielectric strength >15 kV/mm, fully meeting electrical safety requirements.

Q5: What is the mass production lead time?


A5: 15-20 days for standard products, 25-30 days for customized products.
