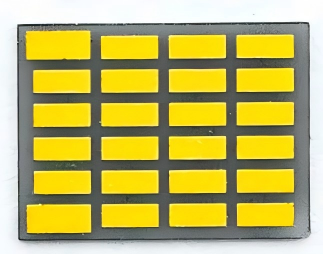

12×8mm DPC Aluminum Nitride Ceramic Substrate for Semiconductor Thermoelectric Coolers (TEC)
This product is a high-performance ceramic circuit board specifically designed for semiconductor thermoelectric coolers. It utilizes aluminum nitride (AlN) ceramic as the base material and employs the Direct Plated Copper (DPC) process to form precise circuit patterns. With its exceptional thermal conductivity and electrical insulation, this substrate ensures efficient heat dissipation and stable operation for TEC devices, making it ideal for high-power and high-precision temperature control applications.
Superior Thermal Management: Aluminum nitride ceramic offers extremely high thermal conductivity (~170-200 W/mK), enabling rapid heat transfer and optimal TEC performance.
Advanced DPC Process: Copper traces are directly plated onto the ceramic surface, ensuring strong adhesion, fine line resolution, and minimal thermal resistance.
Compact Design: The small 12×8mm size allows for integration into space-constrained applications while maintaining robust performance.
Dual-Layer Structure: Supports complex circuit layouts for customized electrical connections and thermal pathways.
High Reliability: Excellent thermal expansion matching with TEC materials, ensuring durability under thermal cycling and harsh environments.
High Current Capacity: Designed to withstand the high operating currents required by TECs without performance degradation.
Precision temperature control systems for laser diodes and optical communication modules.
Cooling solutions for high-power LEDs, CCD/CMOS sensors, and medical diagnostic equipment.
Miniaturized TEC assemblies in portable devices, automotive electronics, and aerospace systems.
Thermal management in high-frequency RF devices and energy-efficient cooling modules.
Q1: Why choose aluminum nitride over alumina for TEC substrates?
A: Aluminum nitride provides 5-8x higher thermal conductivity than alumina, drastically reducing thermal resistance and improving TEC efficiency in high-heat-flux scenarios.
Q2: Can the substrate be customized for irregular shapes or via designs?
A: Yes. The DPC process supports flexible circuit patterning, micro-vias, and custom geometries to meet specific layout requirements.
Q3: What is the maximum operating temperature of this substrate?
A: Aluminum nitride substrates can operate reliably in environments exceeding 200°C, with performance dependent on the surface finish and assembly materials.
Q4: How does the DPC process enhance performance compared to thick-film ceramics?
A: DPC offers superior copper adhesion, finer feature resolution, and lower thermal impedance, resulting in improved power handling and longevity.
Q5: Is this substrate suitable for high-vibration environments?
A: Yes. The mechanical strength of aluminum nitride and robust copper-ceramic bonding ensure stable performance under vibration and shock.
