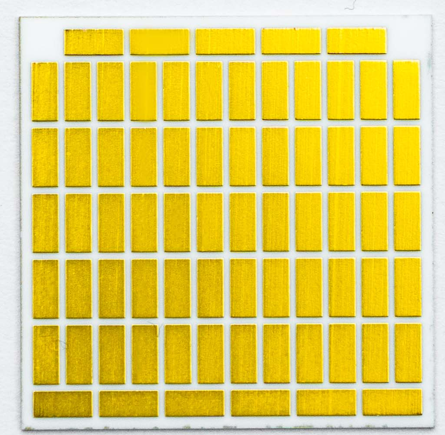

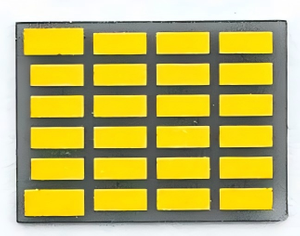

40x40mm DPC Ceramic Substrate - For Semiconductor Thermoelectric Coolers
This product is a high-performance ceramic circuit board specifically designed and manufactured for semiconductor thermoelectric coolers. It utilizes advanced Direct Plated Copper technology to create precise circuit patterns on an alumina ceramic base, making it a critical component for the efficient and stable operation of TECs. With its excellent electrical insulation, high thermal conductivity, and well-matched coefficient of thermal expansion to TEC chips, this substrate is an ideal solution for high-end applications such as temperature control systems, laser modules, and photoelectric devices.
Core Value: To provide a reliable electrical interconnection and efficient thermal management platform for TECs, ensuring maximized performance and long-term reliability for cooling/heating modules.
Core Material Utilizes high-purity Alumina Ceramic, offering excellent electrical insulation, mechanical strength, and chemical stability.
Advanced Process：Direct Plated Copper Process creates circuits by depositing copper layers directly onto the ceramic surface, enabling high pattern precision, strong bond strength, and a shorter heat conduction path.
Ideal Size The standard 40mm x 40mm size perfectly matches various common TEC chips, facilitating easy system integration and design.
Precision Structure ：Double-layer circuit design allows for complex interconnections on both sides, enabling more flexible electrical routing and thermal management.
Superior Thermal Conductivity ：The alumina substrate offers good intrinsic thermal conductivity, complemented by the highly conductive DPC copper circuits for rapid heat transfer away from the TEC to the heat sink.
High Reliability： Features strong adhesion between the copper layer and ceramic, a well-matched CTE to TEC semiconductor materials, and excellent resistance to thermal cycling, ensuring long service life.
High Current Capacity ：The thickness of the copper circuit layer can be customized based on requirements to carry the high operating currents needed by TECs, ensuring stable system performance.
This ceramic substrate is primarily used in applications requiring precise temperature control, serving as a core component in TEC modules:
Temperature Control Systems: High-precision incubators, PCR instruments, DNA sequencers, and other biomedical equipment.
Optoelectronics & Communications: Temperature stabilization for laser diodes and DFB/FP lasers; thermal management inside optical transceivers and amplifiers.
Consumer Electronics: Small-scale thermoelectric cooling devices like high-end cosmetic refrigerators, mini wine coolers, and constant-temperature water dispensers.
Industrial & Research: Cooling for CCD/CMOS image sensors, blackbody sources, and constant-temperature platforms for precision measurement instruments.
Automotive Electronics: Automotive mini-fridges, heated/cooled seats, etc.
Q1: Why choose a ceramic substrate for TECs instead of traditional FR-4?
A: TECs operate with high currents and generate concentrated heat. FR-4 has poor thermal conductivity, preventing efficient heat dissipation, and its coefficient of thermal expansion mismatches that of TEC chips, leading to potential failure during thermal cycling. Alumina ceramic offers superior thermal conductivity, excellent insulation, high strength, and a CTE close to semiconductor materials, making it the optimal choice for TEC substrates.
Q2: What are the advantages of the DPC process compared to other ceramic processes?
A: Compared to thick film printing and HTCC/LTCC processes, DPC offers:
Higher Line Precision: Enables finer lines and spaces, suitable for high-density circuits.
Better Thermal Performance: Direct metal-to-ceramic bond minimizes thermal resistance.
Superior Surface Flatness: Facilitates the mounting and soldering of TEC chips.
Q3: What is the current-carrying capacity of this 40x40mm substrate?
A: The current-carrying capacity primarily depends on the thickness and width of the copper traces. We can design and customize the copper thickness and pattern according to your specific current requirements to ensure safe and reliable operation.
Q4: Can this substrate operate stably in harsh environments like high temperature and humidity?
A: Yes. The alumina ceramic itself offers excellent chemical stability and high-temperature resistance. The strong bond of the DPC copper layer ensures the substrate can withstand demanding environmental conditions, guaranteeing long-term reliability.
Q5: Can you provide custom sizes or shapes?
A: Absolutely. We support customization based on specific client needs, including different dimensions, shapes, layer counts, and circuit patterns. Please provide your detailed technical requirements for a tailored solution.
