Ceramic PCB vs. FR4 which offers better thermal management

Why thermal management is the real battleground in PCB selection

In many electronics products, temperature is the hidden driver of everything else:

• Efficiency: LEDs and power devices become less efficient at higher junction temperatures.

• Lifetime: Many failure mechanisms accelerate exponentially with temperature (e.g., solder fatigue, dielectric degradation, package delamination).

• Performance stability: Optical color shift in LEDs/laser diodes and parameter drift in analog circuits can be temperature-driven.

• Safety and compliance: Medical and industrial equipment often has strict limits on surface temperature and insulation breakdown.

When a system runs hot, the PCB is not just a wiring platform; it becomes part of the thermal solution. FR4 PCBs can be improved with heavier copper, thermal vias, metal core boards, and heat spreaders. Yet the base material still constrains the design. A Ceramic PCB often improves the thermal foundation so designers can use simpler layouts, fewer thermal “patches,” and more stable operating points.

Ceramic PCB vs FR4: the thermal physics in plain terms

Heat moves through a board by conduction. A simplified comparison looks like this:

• FR4: low thermal conductivity → heat tends to stay localized near the source → hot spots and higher junction temperatures unless aggressive thermal design is added.

• Ceramic PCB: much higher thermal conductivity → heat spreads and conducts more efficiently → lower peak temperatures and more uniform thermal fields.

Even without quoting generic textbook numbers, the product data you shared already shows why ceramics matter. Your AlN Ceramic PCB (for endoscope light sources) specifies thermal conductivity ≥170 W/(m·K) and thermal resistance <2.5 K/W. Your alumina Ceramic PCB products specify thermal conductivity 24–28 W/(m·K). Those values reflect a major difference in heat flow capability between ceramic substrates and typical polymer laminates. When designers ask which offers better thermal management, the material evidence strongly favors a Ceramic PCB, especially AlN.

Still, FR4 remains a strong choice when power density is moderate and routing complexity or cost is the priority. The best answer is: a Ceramic PCB usually offers superior thermal management, but FR4 can be adequate with enough mitigation—at the expense of space, cost, and complexity.

Data-driven comparison using your product specs

To make the comparison concrete, let’s translate your product specifications into thermal management implications and place them beside what FR4 typically struggles with in high-power conditions.

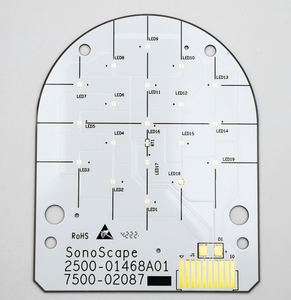

1) Medical endoscope cold light source: AlN Ceramic PCB vs FR4

Your medical light-source substrate is a 45×70 mm AlN Ceramic PCB using direct plated copper technology and a single-layer circuit layout. Key specs include:

• Thermal conductivity: ≥170 W/(m·K)

• Thermal resistance: <2.5 K/W

• Operating temperature: 0–120℃

• Surface flatness: ≤0.5 μm

• Reflectivity: ≥85% (@450 nm)

• Thermal deformation: ≤0.1%

• Withstand voltage: ≥3.5 kV

• Insulation resistance: ≥10¹³ Ω

• Medical compliance: ISO 13485, ISO 10993 biocompatibility, IEC 60601-1

A medical endoscope cold light source is a thermal problem disguised as an optics problem. High-brightness LEDs or laser diodes generate heat, and when they overheat:

• LED output drops (brightness attenuation)

• wavelength shifts (spectral drift → color fidelity issues)

• lifetime decreases

• encapsulants and optics can degrade faster

A Ceramic PCB based on AlN is engineered to address exactly this: fast heat conduction, stable flatness for optical alignment, high reflectivity for optical efficiency, and strong insulation for safety. FR4 in this application typically requires added metal-core boards, thick copper planes, thermal interface stacks, or separate heat spreaders to approach the same stability. Even then, FR4’s dimensional and thermal performance can introduce drift and hot-spot risk in compact, high-power light engines.

Conclusion for this use case: For endoscope light sources, a Ceramic PCB—especially AlN—almost always provides better thermal management than FR4, and the stability benefits extend beyond temperature into optical consistency.

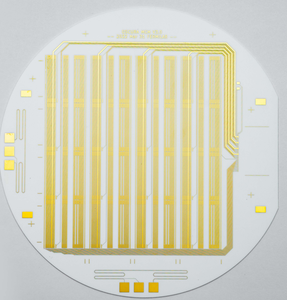

2) Industrial control: Alumina Ceramic PCB vs FR4

Your industrial control substrate is a 100×100 mm alumina Ceramic PCB with a double-layer circuit structure and Direct Plated Copper technology. Key specs include:

• Withstand voltage: ≥3.0 kV

• Insulation resistance: ≥10¹² Ω

• Dielectric constant: 9.8 @1MHz

• Thermal conductivity: 24–28 W/(m·K)

• CTE: 6.5–7.5 ppm/℃

• Operating temperature: -55–350℃

• Circuit accuracy: ±30 μm

• Interlayer alignment: ±25 μm

• Copper thickness: 50–200 μm adjustable

• Flexural strength: ≥300 MPa

Industrial control often involves power conversion, motor drive circuitry, and high-current traces. FR4 can support complex multilayer routing, but it may become a bottleneck when:

• continuous current is high

• ambient temperature is elevated

• enclosures are sealed

• long service life is required

• insulation margin must remain stable in humidity

Your alumina Ceramic PCB offers a wide operating temperature range and excellent insulation stability. Its adjustable copper thickness (50–200 μm) is a meaningful thermal advantage too, because thicker copper reduces resistive losses and spreads heat better. FR4 can also use thick copper, but the substrate’s lower thermal conductivity and higher thermal expansion can push designers into additional heat-sinking and reinforcement strategies.

Conclusion for this use case: For industrial control systems with elevated heat and voltage demands, an alumina Ceramic PCB generally offers better thermal management and insulation reliability than FR4, though FR4 may win on cost and routing density.

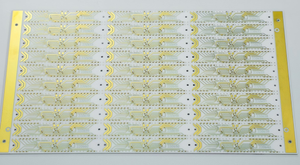

3) Compact control modules: small alumina Ceramic PCB vs FR4

Your compact 10×30 mm alumina Ceramic PCB (double-layer) emphasizes precision and miniaturization:

• Thermal conductivity: 24–28 W/(m·K)

• Thermal resistance: <15 K/W

• Operating temperature: -55–300℃

• Circuit accuracy: ±20 μm

• Minimum line width/spacing: 50 μm

• Copper thickness: 30–150 μm adjustable

• Withstand voltage: ≥2.5 kV

• Continuous current capacity: up to 15A (power lines)

Compact modules often have less physical space for heatsinks and airflow. That makes the board material more important. In a small form factor, FR4 hot spots can be severe, and adding thermal vias may be limited by routing density or layer count. A Ceramic PCB can provide a better baseline heat path and more stable mechanical behavior under vibration and thermal cycling—both of which you highlight (vibration testing 20–2000 Hz).

Conclusion for this use case: In space-constrained, high-current modules, a Ceramic PCB typically outperforms FR4 thermally and mechanically, reducing the need for complex thermal workarounds.

Featured-snippet style comparison table: Ceramic PCB vs FR4 for thermal management

If your primary goal is thermal management, the table points strongly toward Ceramic PCB.

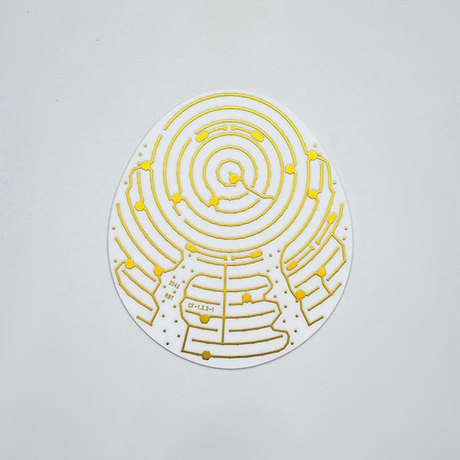

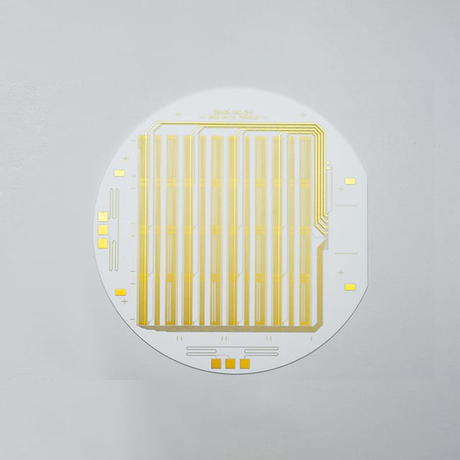

Understanding “Ceramic PCB” process options and how they change thermal performance

Thermal management in a Ceramic PCB is not only about the ceramic substrate. The copper system—how thick it is, how it bonds, and how it patterns—has a huge effect on heat spreading and current capacity. That’s why engineers compare processes.

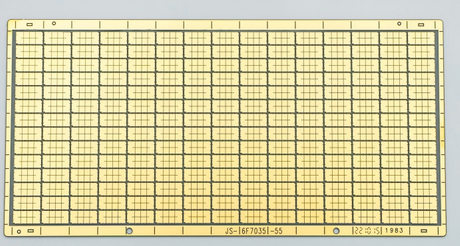

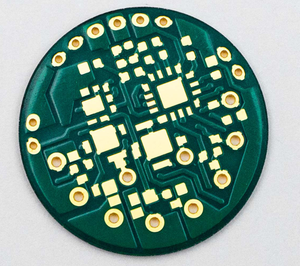

DPC process ceramic circuit board (Direct Plated Copper)

A DPC process ceramic circuit board uses metallization and electroplating to build copper on ceramic. Your products explicitly reference Direct Plated Copper technology, which aligns with the DPC family.

Thermal advantages in a Ceramic PCB built with DPC include:

• Adjustable copper thickness (you list ranges like 30–150 μm or 50–200 μm)

• Potential for fine line/spacing (you list minimum line width/spacing 50 μm)

• Good integration for compact layouts where routing density matters

For thermal management, thicker copper on a Ceramic PCB reduces trace resistance (less Joule heating) and improves in-plane heat spreading. DPC is a strong choice when you need both thermal performance and layout precision.

DBC process ceramic circuit board (Direct Bonded Copper)

A DBC process ceramic circuit board bonds copper foil directly to ceramic, typically enabling very thick copper layers and robust bonding strength. This is often used for:

• high current power modules

• power conversion stages

• motor drives

• applications where copper thickness and thermal spreading matter more than ultra-fine features

Thermally, a Ceramic PCB using DBC can excel at distributing heat across large copper areas and delivering heat efficiently into a baseplate or heatsink.

AMB process ceramic circuit board (Active Metal Brazing)

An AMB process ceramic circuit board uses an active brazing alloy to bond metal (often copper) to ceramic. This is frequently chosen in high-reliability power electronics because it can perform very well under thermal cycling.

Thermal management benefits include:

• very strong metal-ceramic bond integrity

• robust performance in harsh cycling environments

• suitability for long-life, high-power assemblies

If your thermal requirements are paired with demanding reliability—like long service life in harsh industrial environments—an AMB process ceramic circuit board can be a compelling Ceramic PCB route.

Thick film ceramic circuit board and Thin film ceramic circuit board

These approaches define how conductors and patterns are formed on ceramic.

A Thick film ceramic circuit board typically uses screen-printed conductive pastes that are fired. Thermal implications:

• good for simple circuits and integrated resistors

• generally less suited for very high currents unless conductor thickness is sufficient

• often used where cost and robust simplicity matter

A Thin film ceramic circuit board uses deposited metal layers and photolithography. Thermal implications:

• excellent precision and potential high-frequency performance

• conductor layers are often thinner unless built up

• generally used when signal integrity and precision outweigh raw current capacity

Both can still be considered Ceramic PCB solutions, but for maximum thermal management in high-power designs, copper-bonded/plated systems (DPC/DBC/AMB) are more common.

Thermal management beyond conductivity: what Ceramic PCB improves that FR4 cannot easily match

Thermal management is not only about watts per meter-kelvin. In real products, a Ceramic PCB provides second-order advantages that often become the deciding factors.

1) Lower thermal deformation and better flatness

Your AlN Ceramic PCB lists:

• surface flatness ≤0.5 μm

• thermal deformation ≤0.1%

In optical engines—especially endoscope illumination—mechanical stability supports optical alignment and consistent coupling. FR4 can warp more with temperature and humidity, especially in thin or large panels, impacting assembly yield and optical performance stability. A Ceramic PCB is often selected because it stays flat and stable.

2) Higher insulation resistance and dielectric withstand

Your Ceramic PCB examples show insulation resistance ≥10¹²–10¹³ Ω and withstand voltage ≥2.5–3.5 kV. That matters because high-power systems frequently run with higher voltage and more compact spacing. A Ceramic PCB provides more insulation margin and can reduce leakage risks in humidity or aging scenarios.

3) Better high-temperature capability

Your alumina Ceramic PCB supports operating temperatures up to 300–350℃, far above typical FR4 comfort zones. Even if the system doesn’t run continuously at those extremes, the margin improves robustness against transient overheating, nearby heat sources, or harsh environments.

4) Reduced need for thermal “patchwork”

FR4 thermal design often becomes an accumulation of fixes:

• thermal vias

• thicker copper

• metal core structures

• heat spreaders

• additional interface materials

A Ceramic PCB can reduce the number of add-ons needed to reach stable temperatures, which helps shrink assemblies, simplify manufacturing, and reduce failure points.

Product comparison narrative: why your Ceramic PCB examples align with user intent

People searching “Ceramic PCB vs FR4 thermal management” often come from three industries:

1. LED lighting / optics: trying to prevent heat-driven brightness loss or color shift

2. Power electronics: trying to survive high current, high voltage, thermal cycling

3. Industrial control: trying to combine reliability, insulation, and temperature margin

Your products map cleanly:

• The AlN Ceramic PCB for endoscope light sources focuses on thermal conductivity ≥170 W/(m·K), low thermal resistance, optical reflectivity, and medical compliance. This is exactly where FR4 is weakest: compact high-power light engines needing stable optics.

• The large-format alumina Ceramic PCB (100×100 mm) targets industrial controls with wide temperature range, adjustable copper thickness up to 200 μm, and strong mechanical properties. FR4 can work here, but thermal and insulation reliability can become expensive to guarantee.

• The compact alumina Ceramic PCB (10×30 mm) targets miniaturized control circuits with fine features and current capacity up to 15A. FR4 can be miniaturized too, but hot spots are harder to control in small volumes without thermal compromises.

In other words: your Ceramic PCB lineup is positioned precisely for the Google search intent behind this topic—users who have thermal constraints that FR4 struggles to meet economically or reliably.

When FR4 still makes sense: a balanced view

Even though a Ceramic PCB often wins thermal management, FR4 remains dominant because it is:

• extremely cost-effective

• widely available

• easy to design and manufacture

• excellent for multilayer high-density routing

• compatible with mainstream PCB assembly flows

FR4 can be the right choice when:

• power dissipation is low to moderate

• space allows for heatsinks, airflow, or separate thermal solutions

• high-speed digital routing requires many layers at low cost

• the product is cost-sensitive and thermal margins are adequate

However, as power density increases, FR4 solutions may become “expensive FR4”—requiring complex thermal structures that reduce the cost advantage. At that crossover point, a Ceramic PCB may actually be the more economical path when you consider total system cost, field reliability, and performance stability.

Practical selection guide: decide Ceramic PCB vs FR4 in 60 seconds

Use this checklist:

Choose Ceramic PCB if you have any of the following:

• High-power LEDs/LDs where color/brightness stability matters (e.g., endoscope cold light sources)

• Tight space with limited heatsink volume

• High voltage with compact spacing and strict insulation targets

• Harsh environments (high temperature, vibration, humidity)

• Long lifetime requirements and low tolerance for thermal drift

Choose FR4 if:

• Heat is manageable with standard copper pours and vias

• You need many layers and dense routing at low cost

• Performance is not strongly temperature-sensitive

• The product is cost-driven and reliability targets are moderate

If you choose Ceramic PCB, then choose the process path:

• DPC process ceramic circuit board for fine lines + adjustable copper thickness

• DBC process ceramic circuit board for very thick copper + high current spreading

• AMB process ceramic circuit board for high-reliability bonding + thermal cycling robustness

• Thick film ceramic circuit board for cost-effective printed ceramic circuits

• Thin film ceramic circuit board for ultra-precision and high-frequency performance

FAQs

Does Ceramic PCB always offer better thermal management than FR4?

In most high-power and high-density scenarios, yes—a Ceramic PCB typically offers better thermal management because ceramic substrates conduct heat far more effectively than polymer laminates, reducing hot spots and improving junction temperature control. FR4 can sometimes be sufficient with added thermal measures, but those measures often increase complexity and cost.

Which Ceramic PCB material is best for thermal management: AlN or alumina?

For maximum thermal management, AlN Ceramic PCB usually leads. Your AlN example specifies thermal conductivity ≥170 W/(m·K) with thermal resistance <2.5 K/W, making it ideal for high-power LED/LD light engines. Alumina Ceramic PCB (24–28 W/(m·K) in your specs) is still excellent for many industrial needs and often provides a strong cost-performance balance.

How do DPC, DBC, and AMB affect Ceramic PCB thermal performance?

They influence copper thickness, bonding strength, and heat spreading:

• A DPC process ceramic circuit board supports precision routing and adjustable copper thickness, enabling compact thermal spreading and controlled current paths.

• A DBC process ceramic circuit board often enables very thick copper for high current and strong heat spreading.

• An AMB process ceramic circuit board provides robust bonding and reliability under thermal cycling, common in power modules.

When should I use a Thick film ceramic circuit board or Thin film ceramic circuit board?

A Thick film ceramic circuit board is suitable for robust, cost-effective ceramic circuits and can integrate printed resistors, often in simpler layouts. A Thin film ceramic circuit board is chosen for ultra-fine precision, tight tolerances, and often higher-frequency performance. For maximum thermal management at high current, many designs prefer copper-plated/bonded ceramic routes, but film approaches still fit many Ceramic PCB applications.

For medical endoscope light sources, is FR4 acceptable?

In some low-power designs it may be, but high-brightness endoscope cold light sources usually benefit strongly from a Ceramic PCB. Your AlN Ceramic PCB example emphasizes high thermal conductivity, optical reflectivity, flatness, and high insulation, which directly support stable brightness and color fidelity—key medical illumination requirements.

Can Ceramic PCB reduce total system cost even if the board itself costs more?

Often, yes. A Ceramic PCB can reduce the need for extra thermal parts (heat spreaders, complex via arrays, stacked interface materials), improve yield, and reduce field failures. In high-power compact products, the total cost of “making FR4 work” can exceed the cost of using a Ceramic PCB from the start.
