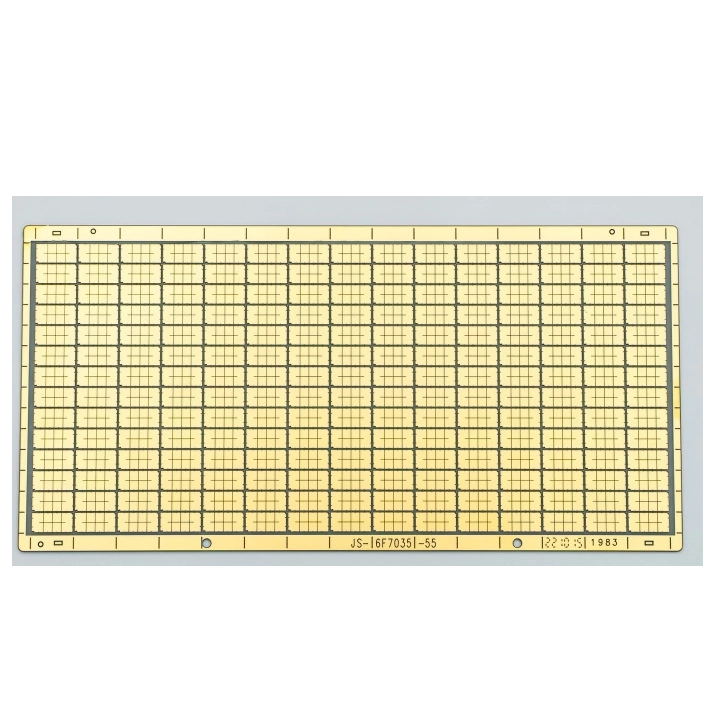

Choosing between alumina (Al₂O₃) and aluminum nitride (AlN) is one of the most common decisions engineers make when specifying a Ceramic PCB. Both materials are proven, widely adopted, and compatible with modern ceramic circuit technologies. Yet they solve different problems. Alumina-based Ceramic PCB platforms are often selected for cost-effective insulation reliability, strong mechanical properties, and broad operating temperature range. Aluminum nitride Ceramic PCB platforms are typically selected when thermal performance must be pushed to the limit—especially in compact, high-power lighting and high heat-flux modules where every degree matters.
This comparison becomes easier when grounded in real product data. In the product information you provided, the AlN Ceramic PCB for medical endoscope cold light source systems highlights thermal conductivity ≥170 W/(m·K), thermal resistance <2.5 K/W, optical reflectivity ≥85% at 450 nm, and extremely tight flatness (≤0.5 μm). In contrast, the alumina Ceramic PCB examples for industrial control (100×100 mm) and compact control circuits (10×30 mm) emphasize stable insulation (withstand voltage ≥3.0 kV or ≥2.5 kV), thermal conductivity 24–28 W/(m·K), wide operating temperature ranges (-55℃ to 300–350℃), precision circuit characteristics, high flexural strength, and adjustable copper thickness.
Before comparing differences, it helps to recognize what both materials enable in a Ceramic PCB:
Excellent electrical insulation compared with polymer laminates
High resistance to moisture-related leakage (especially with proper surface finish)
Better high-temperature stability than standard FR-4
Strong compatibility with high-power packaging and thermal interface design
A platform for robust copper metallization and bonding processes
From a system design perspective, both alumina and AlN Ceramic PCB options help engineers reduce hot spots, improve insulation margin, and increase reliability in environments that would challenge conventional PCBs.
The single most famous difference between alumina and aluminum nitride in Ceramic PCB design is thermal conductivity.
Your AlN endoscope light-source Ceramic PCB lists:
Thermal conductivity: ≥170 W/(m·K)
Thermal resistance: <2.5 K/W
This combination signals a substrate optimized for fast heat removal from high-brightness LEDs or laser diodes. In medical illumination, excess heat causes brightness attenuation and spectral drift. A high-thermal-conductivity Ceramic PCB improves color fidelity and stability by maintaining lower and more uniform junction temperatures.
Your alumina industrial control Ceramic PCB products list:
Thermal conductivity: 24–28 W/(m·K)
Operating temperature: -55℃ to 300–350℃
Withstand voltage: ≥3.0 kV (large board) or ≥2.5 kV (compact board)
Insulation resistance: ≥10¹² Ω
Flexural strength: ≥280–300 MPa (depending on model)
Copper thickness adjustable up to 200 μm (large board)
This describes a Ceramic PCB platform designed for reliability, insulation stability, and mechanical robustness—often the priorities in industrial control, automation, and instrumentation. Thermal conductivity is still far higher than typical polymer boards, but it is not at the AlN extreme. The result is a cost-effective, high-reliability substrate for medium-to-high power designs.
Below is a featured-snippet-friendly comparison table built directly from your product details.
Parameter | Aluminum Nitride (AlN) Ceramic PCB (45×70 mm, endoscope light source) | Alumina Ceramic PCB (100×100 mm industrial control / 10×30 mm compact control) | What it means in practice for Ceramic PCB selection |
|---|---|---|---|
Thermal conductivity | ≥170 W/(m·K) | 24–28 W/(m·K) | AlN Ceramic PCB is best for high heat-flux LEDs/LDs; alumina Ceramic PCB is strong for moderate-to-high power |
Thermal resistance (example) | <2.5 K/W | <15 K/W (compact) | Lower thermal resistance supports lower junction temperature in a Ceramic PCB module |
Operating temperature | 0℃ to 120℃ | -55℃ to 300–350℃ | Alumina Ceramic PCB supports extreme industrial temperature ranges |
Surface flatness / deformation | Flatness ≤0.5 μm; deformation ≤0.1% | Large-size warpage controlled; flatness spec given by process control | For optical modules, AlN Ceramic PCB flatness supports stable illumination and assembly yield |
Optical reflectivity | ≥85% (@450 nm) | Not specified | Reflective AlN Ceramic PCB can improve optical efficiency in blue LED systems |
Withstand voltage | ≥3.5 kV | ≥3.0 kV (large) / ≥2.5 kV (compact) | Both are strong; AlN example offers higher margin for safety-critical Ceramic PCB designs |
Insulation resistance | ≥10¹³ Ω | ≥10¹² Ω | Both excellent; higher resistivity supports high-reliability Ceramic PCB insulation |
Copper thickness options | (Not explicitly ranged in the medical description, but DPC copper is used) | 50–200 μm (large), 30–150 μm (compact) | Thick copper helps current capacity and heat spreading on alumina Ceramic PCB platforms |
Circuit structure | Single-layer optimized | Double-layer precision | Alumina Ceramic PCB can scale to double-layer control logic; AlN example emphasizes thermal/optical simplicity |
Key takeaway: If thermal conductivity and optical stability are the core mission, AlN Ceramic PCB leads. If reliability, wide temperature tolerance, and cost-effective industrial scaling matter most, alumina Ceramic PCB is a common first choice.
Most buyers don’t choose materials in a vacuum; they choose based on the system category. Here is a practical mapping that aligns with user search intent.
Best fit: AlN Ceramic PCB
Why: In endoscope systems, the light source must remain stable in brightness and color. Your AlN Ceramic PCB is explicitly designed for this, offering very high thermal conductivity and low thermal resistance, plus excellent flatness and optical reflectivity. These features reduce thermal drift and help maintain consistent optical output.
Where alumina might still be used: Lower-power medical modules or control boards where thermal loads are manageable and the main priority is insulation and mechanical stability.
Best fit: Alumina Ceramic PCB (often) or AlN Ceramic PCB (when heat is extreme)
Why: Industrial control systems frequently face high voltage insulation requirements, wide temperature swings, and long service life. Your alumina Ceramic PCB models support -55℃ to 300–350℃, high withstand voltages, and thick copper options up to 200 μm—well aligned with industrial reliability needs.
When AlN becomes relevant: If control electronics share space with high-power semiconductors or if heat density is unusually high, AlN Ceramic PCB can provide extra thermal headroom.
Best fit: Alumina Ceramic PCB (often)
Why: Your compact 10×30 mm alumina Ceramic PCB emphasizes fine features (50 μm spacing), vibration reliability, and current capacity up to 15A. In miniaturized modules, alumina provides a strong balance of insulation, strength, and thermal improvement over conventional boards.
When AlN becomes relevant: Very high brightness micro-light engines, compact lasers, or densely packed power stages.
A Ceramic PCB is not just “a ceramic board.” The manufacturing approach determines copper thickness, feature resolution, bond reliability, and thermal cycling behavior. This is where your required keywords matter, because Google users often search those exact process names while comparing alumina and AlN.
A DPC process ceramic circuit board builds copper on ceramic via metallization and electroplating. Your products reference Direct Plated Copper technology and provide copper thickness ranges (30–150 μm, 50–200 μm), plus fine line accuracy (±20 μm, ±30 μm).
Why DPC matters in the alumina vs AlN comparison:
Alumina + DPC is common for industrial control where fine routing and thick copper are both helpful.
AlN + DPC is powerful for compact, high-power light modules where precision and thermal transfer must coexist.
DPC enables design optimization: you can thicken copper where you need current capacity and leave it lighter where you need fine features, improving thermal spreading and electrical performance.
Thermal note: Copper is an excellent lateral heat spreader. A Ceramic PCB with DPC copper can reduce hot spots by distributing heat across larger copper areas before transferring it into a heatsink.
A DBC process ceramic circuit board bonds copper foil directly to ceramic, typically providing very robust copper layers and strong bonding. This approach is frequently used in power modules because thick copper improves both current capacity and heat spreading.
How it relates to alumina vs AlN:
Alumina + DBC is widely used when cost and reliability are important and thermal loads are high but not extreme.
AlN + DBC is used when maximum thermal performance is needed, but it is generally more premium.
If your product is a high-current power stage and your priority is thick copper, a DBC process ceramic circuit board may be selected regardless of whether you choose alumina or AlN, but AlN will usually provide more thermal headroom.
An AMB process ceramic circuit board uses active metal brazing to bond copper (or other metals) to ceramic. It is valued for bond strength and stability under repeated thermal cycling—critical in harsh power electronics and long-life industrial applications.
How it shapes the alumina vs AlN choice:
If thermal cycling and reliability dominate the requirement, AMB can be attractive with either substrate.
AlN’s higher thermal conductivity reduces temperature gradients, which can further reduce thermo-mechanical stress.
Alumina’s cost advantage can be compelling when you need reliability at scale.
In short: an AMB process ceramic circuit board is often chosen when your reliability test plan is aggressive and you need confidence under repeated power cycling.
A Thick film ceramic circuit board uses printed pastes fired onto ceramic. It is often used for simpler circuits or integrated resistive elements and can be cost-effective in certain production volumes.
Where alumina and AlN fit:
Alumina is commonly used in thick film due to cost and established manufacturing routes.
AlN can be used, but it is typically reserved for applications where thermal performance is essential.
If your goal is functional integration (resistors, sensor structures) more than maximum heat dissipation, a Thick film ceramic circuit board on alumina can be a practical Ceramic PCB solution.
A Thin film ceramic circuit board uses deposition and photolithography. It supports extremely fine features, stable electrical characteristics, and precision applications.
In alumina vs AlN selection:
Both substrates can support thin film, but choices are often driven by cost, thermal needs, and the specific electrical performance targets.
Thin film conductors are often thinner than thick copper, so pure thermal current handling may not be the primary reason to choose thin film.
Thin film can complement a Ceramic PCB strategy when you need precision and stability, not just power dissipation.
The alumina vs AlN Ceramic PCB choice is becoming more important due to several “fresh” market and engineering trends:
Higher brightness in compact lighting
Medical and industrial illumination systems demand more lumens in smaller optical cavities. This pushes heat flux upward and makes AlN Ceramic PCB more attractive, especially for LED/LD sources.
Miniaturized industrial control and sensor modules
Factory automation and instrumentation continue to shrink. Compact modules have less airflow and fewer heatsink options, so alumina Ceramic PCB becomes a practical step-up from conventional boards.
Reliability-first engineering
Qualification tests like humidity aging (e.g., 85℃/85%RH) and vibration are emphasized. Your alumina Ceramic PCB example explicitly addresses humid reliability and vibration testing. A Ceramic PCB substrate often improves insulation stability and mechanical integrity.
Electrification and power semiconductor adoption
More systems use high-efficiency power devices and demand stable thermal pathways. DBC and AMB families—DBC process ceramic circuit board and AMB process ceramic circuit board—gain attention because copper thickness and bonding reliability directly affect performance and lifetime.
As these trends intensify, the material decision becomes a strategic platform choice rather than a minor BOM detail.
Use this practical scoring approach. Ask five questions and see which direction the answers point.
Very high (high-power LEDs/LDs, compact light engine): choose AlN Ceramic PCB
Moderate (power traces, industrial controls with thicker copper): alumina Ceramic PCB is often sufficient
Yes (endoscope illumination, lens alignment, reflector arrays): AlN Ceramic PCB with tight flatness specs is ideal
No (control logic, standard power control): alumina Ceramic PCB is usually fine
Extreme (-55℃ to 300–350℃): alumina Ceramic PCB products are explicitly positioned for this
Moderate (0–120℃ in a controlled medical module): AlN Ceramic PCB works very well and emphasizes thermal control
Both can be excellent, but your provided data shows:
AlN Ceramic PCB: withstand voltage ≥3.5 kV, insulation resistance ≥10¹³ Ω
Alumina Ceramic PCB: withstand voltage ≥2.5–3.0 kV, insulation resistance ≥10¹² Ω
If you want the highest stated margin in your examples, the AlN Ceramic PCB leads.
Need precision fine features with adjustable copper: DPC process ceramic circuit board
Need very thick copper for power: DBC process ceramic circuit board
Need thermal cycling robustness: AMB process ceramic circuit board
Need functional printed ceramics: Thick film ceramic circuit board
Need ultra-precision/high-frequency: Thin film ceramic circuit board
This process decision often matters as much as the substrate material in a Ceramic PCB program.
Choose AlN Ceramic PCB when you need:
maximum thermal conductivity (high heat density)
stable optical output (LED/LD light engines)
very low thermal resistance and tight flatness control
Choose alumina Ceramic PCB when you need:
balanced cost and strong insulation
very wide operating temperature range
strong mechanical durability for industrial control and automation
thick copper options for current capacity (as your products specify)
A medical endoscope light source must deliver consistent illumination and color fidelity. The AlN Ceramic PCB example is engineered for that requirement:
High thermal conductivity (≥170 W/(m·K)) helps maintain stable LED/LD junction temperature
Low thermal resistance (<2.5 K/W) supports higher continuous brightness
Flatness and low deformation reduce optical misalignment risks
Reflectivity ≥85% at 450 nm supports efficient blue-light optics (common in white LED pumping)
High insulation and medical compliance reduce safety risk in regulated environments
In this scenario, alumina Ceramic PCB may work for lower power, but AlN provides more thermal headroom and optical stability at high brightness.
In a PLC control module or power conversion control unit, you may have:
multiple power devices
mixed-signal control circuits
continuous operation in warm enclosures
long service life requirements
Your 100×100 mm alumina Ceramic PCB supports:
operating temperature up to 350℃
withstand voltage ≥3.0 kV
insulation resistance ≥10¹² Ω
copper thickness adjustable up to 200 μm
This is a robust foundation for industrial reliability. AlN could further improve thermal performance, but alumina often hits the best cost-performance point when heat density is manageable and copper can be thickened where needed.
Your 10×30 mm alumina Ceramic PCB is built for space constraints:
fine features (50 μm line/spacing)
thermal resistance <15 K/W
current capacity up to 15A
vibration test robustness
This aligns with sensors, micro-drives, and mini control cores where FR4 might suffer from hot spots and mechanical fatigue. AlN is an option if heat is very concentrated, but alumina often suffices and remains economical for compact module scaling.
For maximum heat dissipation, aluminum nitride typically leads. Your AlN Ceramic PCB example specifies thermal conductivity ≥170 W/(m·K) and thermal resistance <2.5 K/W, which is optimized for high heat-flux LED/LD modules. Alumina Ceramic PCB (24–28 W/(m·K) in your specs) still provides strong thermal performance for many industrial control and compact module applications.
Both can be very durable as Ceramic PCB substrates, but durability depends on the environment and design. Alumina Ceramic PCB is widely used in industrial environments due to strong mechanical properties, wide operating temperature range (-55℃ to 300–350℃ in your products), and proven reliability. AlN Ceramic PCB is also highly reliable, especially where thermal performance reduces stress by lowering temperature gradients.
An AlN Ceramic PCB is often the best fit because endoscope light engines require stable brightness and color fidelity. Your AlN Ceramic PCB includes high thermal conductivity, low thermal resistance, high reflectivity at 450 nm, tight flatness, and strong insulation—all aligned with medical illumination requirements.
