A Ceramic PCB is a circuit board that uses a ceramic material (instead of FR-4 epoxy glass) as the insulating substrate under the copper circuit. The main reason engineers choose a Ceramic PCB is simple: ceramics handle heat, voltage, and harsh environments far better than conventional laminates. When power density rises—high-brightness LEDs, laser diodes, power modules, motor drives, and compact medical devices—thermal management and insulation become design constraints. A Ceramic PCB solves both at the substrate level.
In practical terms, a Ceramic PCB combines three big advantages in one platform:
High thermal conductivity to move heat away from chips fast
High dielectric strength to resist breakdown at high voltage
Mechanical and dimensional stability to keep optics, alignment, and solder joints reliable over time
That’s why you see Ceramic PCB designs in medical endoscope cold light sources, industrial PLC control modules, and compact control circuits—exactly like the product examples you provided.
Modern electronics trends push more watts into less space. Whether it’s a high-power LED array in an endoscope light engine or a power conversion control unit, the substrate can become the bottleneck. If heat can’t escape efficiently, junction temperatures rise, efficiency drops, and reliability collapses.
A Ceramic PCB helps in three measurable ways:
Lower junction temperature (better heat spreading and conduction)
Lower drift (stable electrical and optical behavior across temperature)
Longer lifetime (less thermal cycling stress, better insulation stability)

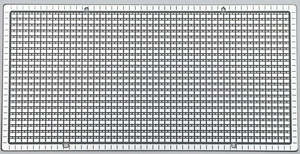

In medical lighting, for example, brightness and color stability are mission-critical. A Ceramic PCB built on aluminum nitride (AlN) can quickly conduct heat away from high-power LED/LD sources, helping prevent spectral drift and brightness attenuation, while maintaining safe insulation and biocompatibility pathways.
Not all Ceramic PCB substrates are the same. The two most common are:
Aluminum Nitride (AlN): premium thermal performance
Alumina (Al₂O₃): strong, economical, widely used
Here’s a comparison table using the exact product specs you shared, plus practical interpretation for design selection:
Attribute | AlN Ceramic PCB (Endoscope Light Source Substrate, 45×70mm) | Alumina Ceramic PCB (Industrial Control, 100×100mm / 10×30mm) | What it means for Ceramic PCB selection |
|---|---|---|---|
Thermal conductivity | ≥170 W/(m·K) | 24–28 W/(m·K) | AlN Ceramic PCB is ideal for high-power LEDs/LDs and dense heat loads |
Thermal resistance (example) | <2.5 K/W | <15 K/W (compact 10×30mm) | Lower is better; a Ceramic PCB with lower K/W reduces junction temperature |
Withstand voltage | ≥3.5 kV | ≥3.0 kV (100×100) / ≥2.5 kV (10×30) | All are strong; AlN sample is highest for insulation margin |
Insulation resistance | ≥10¹³ Ω | ≥10¹² Ω | Both excellent; Ceramic PCB resists leakage in harsh environments |
Flatness / stability | Surface flatness ≤0.5 μm; deformation ≤0.1% | Flatness controlled (warpage <0.3% noted for large size) | Optics and assembly yield improve with a stable Ceramic PCB platform |
Optical reflectivity | ≥85% (@450nm) | (not specified) | For light engines, a reflective Ceramic PCB can improve optical efficiency |
Operating temperature | 0–120℃ | -55–350℃ / -55–300℃ | Alumina Ceramic PCB can handle very wide industrial temperature ranges |
Design takeaway:
If your Ceramic PCB must dissipate intense heat from LEDs/laser diodes in a small medical light source, AlN is usually the first choice. If your Ceramic PCB must survive broad temperatures, mechanical stress, and high insulation requirements in industrial control, alumina is often the value-performance winner.
A Ceramic PCB is defined not only by its ceramic material but also by how copper is attached and patterned. This is where different process families matter for reliability, current capacity, and feature precision.
Below are the most common Ceramic PCB build routes, including all the required keyword phrases.

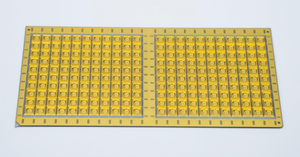

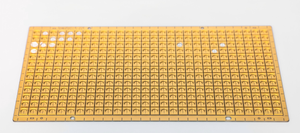

DPC (Direct Plated Copper): copper is plated and built up on the ceramic via metallization and electroplating, enabling fine-line precision and flexible copper thickness choices.
DBC (Direct Bonded Copper): copper foil is bonded to ceramic at high temperature (typically with an oxide eutectic on alumina or special bonding on AlN), producing very robust copper layers for high current and thermal spreading.
AMB (Active Metal Brazing): copper is bonded to ceramic with an active brazing alloy, enabling strong bonding and excellent thermal cycling performance, often used in power modules.
Here’s a process comparison table for quick selection:
Process type for Ceramic PCB | Key strengths | Typical tradeoffs | Best-fit applications |
|---|---|---|---|
DPC process ceramic circuit board | Fine lines, good layout precision, copper thickness can be adjustable, good for compact designs | Process complexity, needs strong plating control | LED/LD light engines, compact control modules, high-density layouts |
DBC process ceramic circuit board | Very thick copper, excellent current handling, strong thermal spreading | Feature sizes typically larger than plated fine lines | Power converters, motor drives, high-current industrial controls |
AMB process ceramic circuit board | Strong bonding, great thermal cycling and reliability, power module heritage | Higher cost, specialized manufacturing | EV/rail power modules, high-reliability power electronics |
Beyond copper bonding, film-based circuit formation is also common in a Ceramic PCB ecosystem:
Thick film ceramic circuit board: conductive/insulating pastes are screen printed and fired.
Pros: cost-effective, good for resistors and simple circuits, robust.
Cons: generally lower precision than plating/etching processes.
Thin film ceramic circuit board: metal layers are deposited by sputtering/evaporation and patterned with photolithography.
Pros: extremely fine features, excellent high-frequency and precision performance.
Cons: higher cost, thinner conductors, often lower current capacity unless built up.
A practical rule:
If you need high current and heat spreading, choose a Ceramic PCB built with plated/bonded copper (DPC/DBC/AMB). If you need ultra-fine precision or integrated passive structures, a Ceramic PCB may use thick film or thin film routes.
Your product descriptions are classic cases of Ceramic PCB specialization:
This Ceramic PCB is optimized for high-brightness LED/LD modules where thermal and optical stability directly impact clinical image quality.
Key Ceramic PCB performance points from your specs:
Thermal conductivity ≥170 W/(m·K) supports rapid heat evacuation
Thermal resistance <2.5 K/W improves LED junction temperature control
Reflectivity ≥85% at 450 nm supports stable optical performance
Withstand voltage ≥3.5 kV and insulation resistance ≥10¹³ Ω provide safety margin
ISO 13485, ISO 10993, IEC 60601-1 alignment supports medical compliance goals
Why single-layer can still work:
A single-layer Ceramic PCB reduces stack complexity, lowers delamination risks, and often improves heat flow because there are fewer internal interfaces. With an optimized topology, single-layer routing can still satisfy multi-channel LED/LD layouts—especially when paired with smart connector design or external harnessing.
This Ceramic PCB targets stable insulation, mechanical strength, and reliable thermal behavior in industrial environments.
Notable Ceramic PCB parameters:
Withstand voltage ≥3.0 kV; insulation resistance ≥10¹² Ω
Thermal conductivity 24–28 W/(m·K) with CTE 6.5–7.5 ppm/℃
Operating temperature -55℃ to 350℃
Circuit accuracy ±30 μm; interlayer alignment ±25 μm
Copper thickness adjustable 50–200 μm (strong for power/control traces)
This is the kind of Ceramic PCB that fits PLC control modules, automation mainboards, and power conversion control units where reliability and insulation stability under humidity and temperature stress are essential.
In miniaturized control circuits, the Ceramic PCB often becomes the “stability backbone” for sensors, interface circuits, and micro drives.
Highlights:
Minimum line width/spacing 50 μm; circuit accuracy ±20 μm
Thermal resistance <15 K/W (size-constrained but designed for heat)
Continuous current capacity up to 15A for power lines (as specified)
Strong vibration test performance (20–2000 Hz noted)
In small modules, a Ceramic PCB is often chosen because it holds flatness, resists vibration-induced fatigue, and keeps insulation robust in dense layouts.
When people search “Ceramic PCB,” they usually mean one of these intents:
“Which Ceramic PCB is best for heat dissipation?”
“How do I choose DPC vs DBC vs AMB Ceramic PCB?”
“AlN vs alumina Ceramic PCB: what’s the difference?”
“What Ceramic PCB works for LED modules / endoscope light source?”
“What are the pros/cons and costs of Ceramic PCB options?”
Here’s a decision list that maps directly to those intents:
Choose an AlN Ceramic PCB when:
heat flux is high (high-power LED/LD, compact light engine)
optical stability matters (color consistency, reduced drift)
you want low thermal resistance and high safety insulation
Choose an alumina Ceramic PCB when:
you need strong insulation and mechanical robustness at controlled cost
wide operating temperature range is critical
the thermal load is moderate or spread out by design
Choose DPC process ceramic circuit board when:
you need fine lines, compact routing, or adjustable copper thickness
your Ceramic PCB must integrate precision layouts for multi-channel designs
Choose DBC process ceramic circuit board when:
very high current and thick copper are the priority
your Ceramic PCB is used in power stages, not ultra-fine logic routing
Choose AMB process ceramic circuit board when:
thermal cycling and long-term reliability dominate
the Ceramic PCB is part of a high-reliability power module ecosystem
Choose Thick film ceramic circuit board when:
you want cost-effective ceramic circuits, possibly with printed resistors
your Ceramic PCB does not need ultra-fine photolithographic lines
Choose Thin film ceramic circuit board when:
you need micro-scale precision, tight impedance control, or RF performance
your Ceramic PCB prioritizes signal integrity over high current
Several market and technology shifts are increasing Ceramic PCB adoption:
Higher power density lighting: medical illumination and industrial vision use brighter, smaller sources; a Ceramic PCB helps keep junction temperatures controlled.
More compact electronics: miniaturization raises thermal resistance challenges; a Ceramic PCB reduces the thermal bottleneck.
Reliability-first design: devices must survive thermal cycling, humidity testing, and vibration; a Ceramic PCB improves insulation stability and mechanical performance.
Electrification and power semiconductors: GaN/SiC power stages drive demand for ceramic substrates; many power platforms start with a Ceramic PCB approach (especially DBC/AMB families).
Medical compliance pressure: when systems must align with medical quality and safety expectations, a Ceramic PCB with robust insulation and stable materials becomes more attractive.
In other words: as systems become hotter, smaller, and more regulated, Ceramic PCB is less a luxury and more a baseline enabler.
If you’re specifying a Ceramic PCB, this checklist helps reduce back-and-forth and protects yield:
Thermal targets
Define power dissipation, allowable junction temperature, and target thermal resistance.
For LED/LD light engines, a Ceramic PCB should prioritize thermal conductivity and flatness.
Electrical insulation
Determine working voltage, surge/withstand requirements, and creepage/clearance constraints.
A Ceramic PCB often allows smaller footprints at higher voltage than FR-4.
Copper thickness and current
Decide trace currents and temperature rise limits.
DPC/DBC/AMB choices determine what your Ceramic PCB can carry continuously.
Layout complexity
If you need dense routing, pick a Ceramic PCB process that supports fine lines (often DPC or thin film).
Assembly and flatness
For optical modules (like endoscopes), Ceramic PCB flatness and deformation specs can be as important as thermal specs.
Environment and compliance
Medical vs industrial requirements differ. A medical Ceramic PCB may need biocompatibility-related material controls, documentation, and safety alignment.
A Ceramic PCB is widely used in high-power LEDs, laser diode modules, power electronics, industrial control, and medical lighting. Any application that needs strong heat dissipation plus high electrical insulation is a natural fit for a Ceramic PCB.
A Ceramic PCB uses ceramics with much higher thermal conductivity than epoxy glass laminate. In your examples, AlN Ceramic PCB is specified at ≥170 W/(m·K), while alumina Ceramic PCB is 24–28 W/(m·K), both far above typical FR-4 performance. This helps keep component temperatures lower and more stable.
A DPC process ceramic circuit board is plated copper on ceramic, often enabling finer features and adjustable copper thickness.
A DBC process ceramic circuit board bonds copper foil to ceramic, typically excellent for thick copper and high current.
An AMB process ceramic circuit board uses active brazing to join copper to ceramic, often chosen for thermal cycling reliability in power modules.
All are valid Ceramic PCB approaches; the right one depends on feature size, current, reliability, and cost.
A Thick film ceramic circuit board is usually best for cost-effective printed circuits and integrated resistive elements. A Thin film ceramic circuit board is best when you need ultra-fine precision, high-frequency performance, or very tight tolerances. Both can be considered part of the broader Ceramic PCB family, but they serve different performance priorities.
Not always. AlN Ceramic PCB is typically better for extreme thermal needs (like compact high-power LED/LD light engines). Alumina Ceramic PCB is often better for balanced cost, excellent insulation, strong mechanical properties, and very wide operating temperature ranges. The “best” Ceramic PCB is the one matched to your real thermal, electrical, and manufacturing constraints.
Yes. A single-layer Ceramic PCB can still support multi-channel LED/LD layouts if the topology is optimized and interconnect strategy is planned (connectors, external harness, or modular partitioning). Single-layer Ceramic PCB designs can also reduce risks associated with multilayer structures.
Reliability depends on junction temperature, thermal cycling amplitude, humidity exposure, mechanical stress, and assembly quality. A Ceramic PCB improves the foundation—better heat flow and insulation stability—so the system can more easily meet long-life targets (your medical example states a life exceeding 10,000 hours under rated conditions). For best results, validate with thermal testing and environmental reliability testing that matches your use case.
